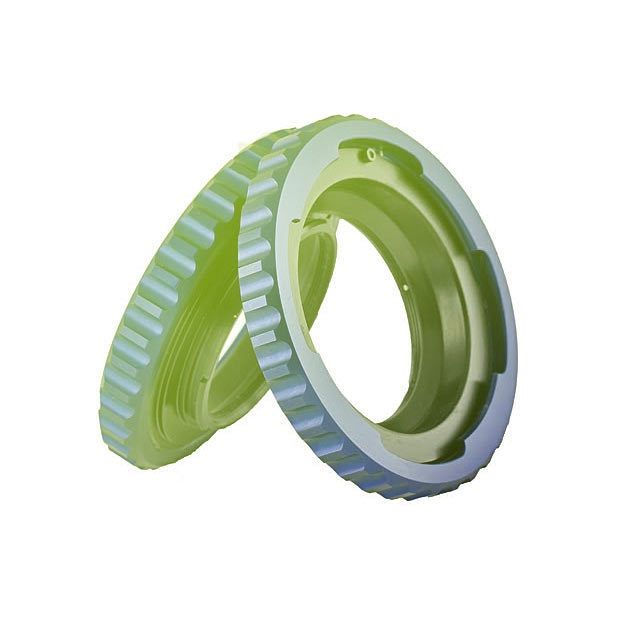

Adapter Canon EF to ARRI PL mount

Do you need to rent in Prague Adapter Canon EF to ARRI PL mount? The Lens Mount Adapter Arri PL to Canon EF allows you to use select Arri PL mounted lenses to fit on a camera body with a Canon EF mount, allowing you to use your existing PL mount lenses with newer cameras that feature the Canon EF mount. This is a lens mount adapter designed to attach to the lens itself, it is not meant to permanently adapt the mount of the camera. The adapter mounts to the lens and is removable, so you can use one adapter on many different PL mounted lenses. This adapter is designed to prevent you from mounting it onto a lens that extends greater then 14mm from the rear of the mount. This is… read more

400,- / shooting day

Rental upon request

The Lens Mount Adapter Arri PL to Canon EF allows you to use select Arri PL mounted lenses to fit on a camera body with a Canon EF mount, allowing you to use your existing PL mount lenses with newer cameras that feature the Canon EF mount. This is a lens mount adapter designed to attach to the lens itself, it is not meant to permanently adapt the mount of the camera. The adapter mounts to the lens and is removable, so you can use one adapter on many different PL mounted lenses.

This adapter is designed to prevent you from mounting it onto a lens that extends greater then 14mm from the rear of the mount. This is to prevent the adapted lens from causing damage to the camera and the lens itself. However, the adapter may fit on some lenses that extend greater than 14mm, so before using any lens with this adapter on a camera with a Canon EF mount, confirm that the lens has proper clearance throughout the focus range. The adapter has been tested to work on a Canon camera with EF mount with the following lenses. Please note although other lenses may work with this adapter, only the lenses below have been tested for proper operation.

  • Maintains correct flange depth between lens and image plane.
  • Infinity remains unchanged, so the lens does not need to be re-collimated or shimmed.
  • Brass construction protects lens mount, stainless steel finish makes the adapter corrosion and wear resistant.
  • Some PL mount lenses can damage the camera or the lens when mounted to a camera with an EF mount using this adapter. This is unavoidable if the adapter is to maintain the correct flange focal distance, and you should confirm and test that any lens used with this adapter maintains the necessary clearance throughout the focus range.

This adapter allows to use some  PL mount lenses on EF mount cameras:


  • Canon EOS series
  • Blackmagic Design with EF mount
  • RED Epic/Scarlet with EF mount



  • Infinity Focusing
  • 0.002mm Accuracy
  • Made Of Military Grade Alloy ( Aw-7075 )
  • Black Anodized

COMPATIBLE WITH:
SLR Magic ANAMORPHOT-CINE 35/50/70mm
Allstar 18-35mm T1.8
Allstar 80-200mm  T3
Allstar 50mm T1.5
Allstar 135mm T1.9
Angenieux Optimo 19.5-94mm
Angenieux Optimo 28-340mm
Angenieux Optimo 45-120mm
Ruby 14-24mm T2.8
Angenieux Optimo 15-40 mm T 2.6
Angenieux Optimo 17-80 mm T 2.2
Angenieux Optimo 28-70 mm
Angenieux  Optimo 24-290 mm
Angenieux 24-290 mm T 2.8
Angenieux 17-102 mm T 2.9
Angenieux 7-81 mm T 2.4 HR
Angenieux 20-120 mm
Canon 300 mm T 2.8
Canon 400 mm T 2.8
Canon 800 mm T 5.6
Canon Century 200 mm T 2
Cooke 18-100 mm T 3
Nikkor 200 mm T 2
Nikkor 300 mm T 2
Nikkor 800 mm T 5.6
Nikkor Micro 200 mm T 4
Canon Century Optics S2000 150-600mm

These lenses can not be used:

Zeiss Master / Ultra/ Compact /C.P. 2/ Super Speed Prime lenses
RED PRO Primes /Zooms
Cooke S4/i  ,5/i  ,SK4, Panchro/i, Anamorphic/i
Leica Summilux-C
Super 35 Illumina
Cine-Xenar II
Zeiss Master/ Lightweight Zoom
Hawk Anamorphic/Spherical
Sony F3 primes
