Digital Slate Betso WTCS-1 with timecode

New BETSO WTCS-1 wireless time code slate is carefully designed to meet rising demands on displayed information capability, overall product durability and lightweight and "plug and play" functionality. It is WiFi ready for cooperation with iOS MovieSlate application and has our latest RF transceiver module for wireless transmission of time code and status information. And of course a lot of more cool features to make your work easier.

Display: Graphical 1“ high, white LED display with adjustable brightness
Dimensions (h x w x d): 230 x 185 x 24 mm (9.0" x 7.3" x 0.9")
Weight (w/o batteries): approx. 760g (1.68 lb)
Mechanical construction: CNC milled, anodized aluminium alloy and stiff wood
Powering: 6x AA battery (alkaline or lithium) / 6x accu (NiMH, NiCd)
External powering: 6 - 16 V DC
Current consumption: approx. 30 - 1000 mA * / approx. 4 mA in stand-by mode (arms of the slate closed)
Battery life: Up to 100 hours **
SMPTE TC formats: 23,976 fps - 30 fps including DF and NDF (also 2x multiples: 23.976 fps - 60 fps supported)
Input TC sensitivity: 0.2 - 10 V (p-p)
Frequency range: 863 - 870 MHz (Europe)
Number of channels: 5
RF output power: 10mW (10dBm)
Operating range: up to 500m ***

* depends on the brightness of LED display
** with the lowest display brightness
*** within the line of sight

500 Kč

Discount -50 %

250 Kčexcl. VAT / shooting day

303 Kč incl. VAT

Usual stock: 2-3 pcs
Pickup of equipment the night before is free
Option for insurance included in price and transport to location

Rental includes
4

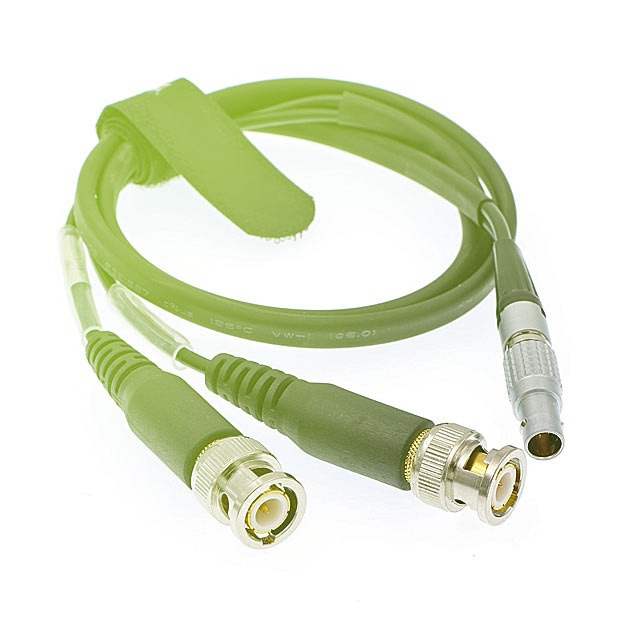

1 × Timecode kabel LEMO 5pin - BNC IN OUT (Sound Devices)
12 × AA baterie (Sanyo / Panasonic / IKEA)
1 × Magnetický zásobník na 12x AA baterii
1 × fixa

Specifications and parameters

Display: Graphical 1“ high, white LED display with adjustable brightness
Dimensions (h x w x d): 230 x 185 x 24 mm (9.0" x 7.3" x 0.9")
Weight (w/o batteries): approx. 760g (1.68 lb)
Mechanical construction: CNC milled, anodized aluminium alloy and stiff wood
Powering: 6x AA battery (alkaline or lithium) / 6x accu (NiMH, NiCd)
External powering: 6 - 16 V DC
Current consumption: approx. 30 - 1000 mA * / approx. 4 mA in stand-by mode (arms of the slate closed)
Battery life: Up to 100 hours **
SMPTE TC formats: 23,976 fps - 30 fps including DF and NDF (also 2x multiples: 23.976 fps - 60 fps supported)
Input TC sensitivity: 0.2 - 10 V (p-p)
Frequency range: 863 - 870 MHz (Europe)
Number of channels: 5
RF output power: 10mW (10dBm)
Operating range: up to 500m ***
