Large / client monitors

Osee Mega 22S4 21.5″ 10-bit HDR Production Monitor (1500 nits)

1 450 Kčexcl. VAT / shooting day
1 755 Kč incl. VAT

Osee Mega 22S4 21.5″ 10-bit HDR Production Monitor (1500 nits)

Specification Value
Panel Size 21.5 inch
Brightness 1500 nits
Color bit Depth 10 bits
SDI Format 2K (2048×1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf; HD (1920×1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I; HD (1280×720): 50/59.94/60P
Other IO USB Type-A x1: 3D-LUT upload, firmware upgrade; USB Type-C x1: internal color calibration via x-rite i1 display probe; 3.5mm mini jack: earphone
Power Supply 100–240V (50/60Hz) AC / 11–17V/5A (XLR Pin4)
Framing Tools, Exposure Tools Aspect, Safe, Center, Crosshatch, Anamorphic; False Color, Zebra, Waveform, Vector, Histogram
Focus Tools, Other Tools Focus Assist, Peaking; DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter, Time Code
Weight Item Weight: 6700g
Resolution 1920×1080
Contrast 1100:1
Video IO 2×3G/HD/SD-SDI signal inputs/outputs, 1×4K@30 HDMI input
HDMI Format 4K (4096×2160): 23.98/24/25/29.97/30P; UHD (3840×2160): 23.98/24/25/29.97/30P; 2K (2048×1080): 23.98/24/25/50/60P; HD (1920×1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I; HD (1280×720): 50/59.94/60P
3D-LUT, Camera Log 3D-LUT: 10 User 3D LUTs Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film, 4K Film, 4.6K Film; Canon C Log, C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Log3G10, RedLogFilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6
Power Consumption 46W
  • Usual stock: 3+ pcs
  • Pickup of equipment the night before is free
  • Option for insurance included in price and transport to location

Rental includes
8

  • 3G-SDI kabel 75ohm buben (25m) 1 × 3G-SDI 75ohm cable reel (25m)
  • 1 × 3G-SDI cable (5-10m)
  • napájecí kabel EURO C13 (1.8m) 1 × Power Cable EURO C13 (1.8m)
  • D-Tap - XLR 4pin (monitor) 1 × D-Tap - XLR 4pin (monitor)

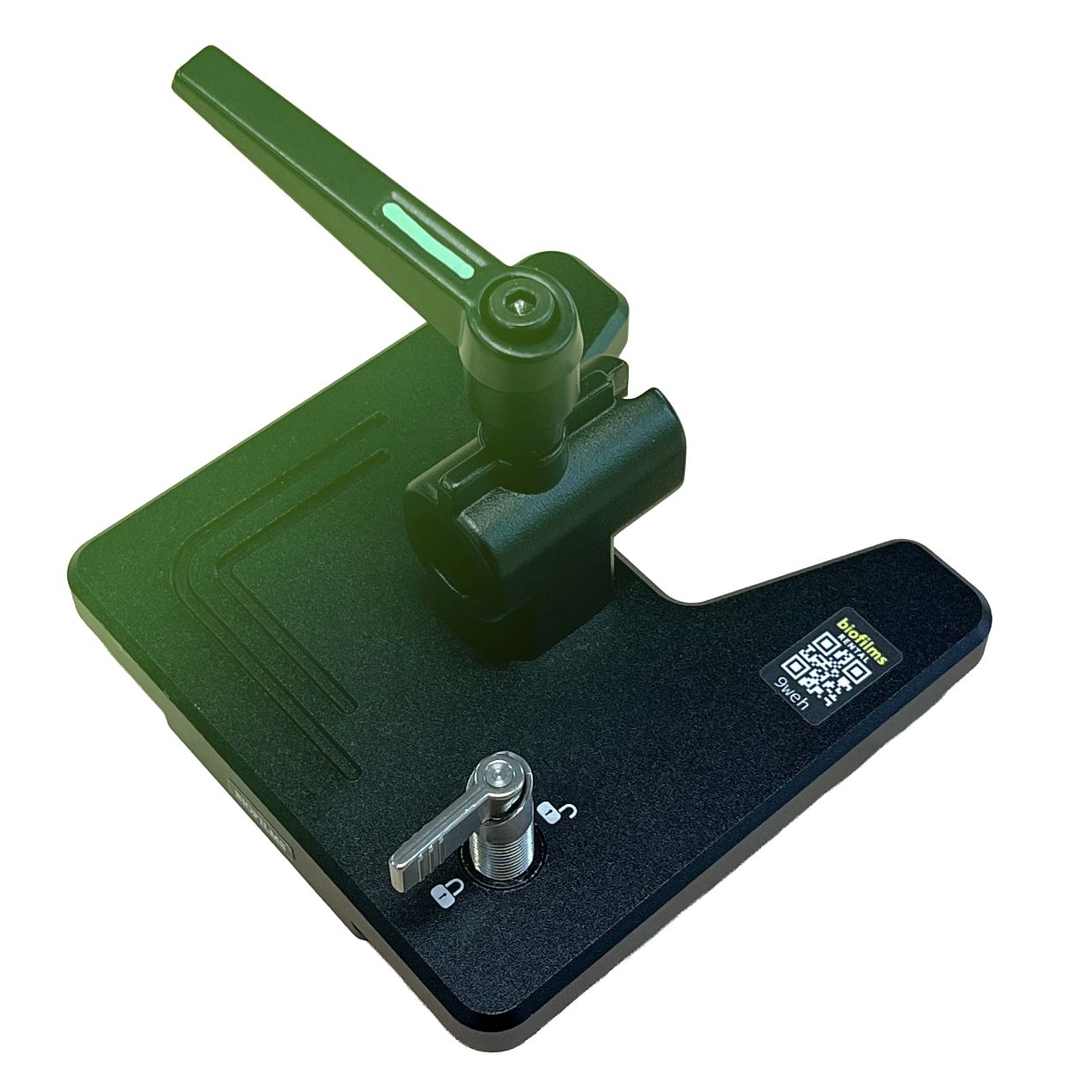

  • Osee Monitor Detachable C-stand Mount 1 × Osee Monitor Detachable C-stand Mount
  • Osee Mega 22S4 Sunshield - Top 1 × Osee Mega 22S4 Sunshield - Top
  • Osee Mega 22S4 Sunshield - Bottom 1 × Osee Mega 22S4 Sunshield - Bottom

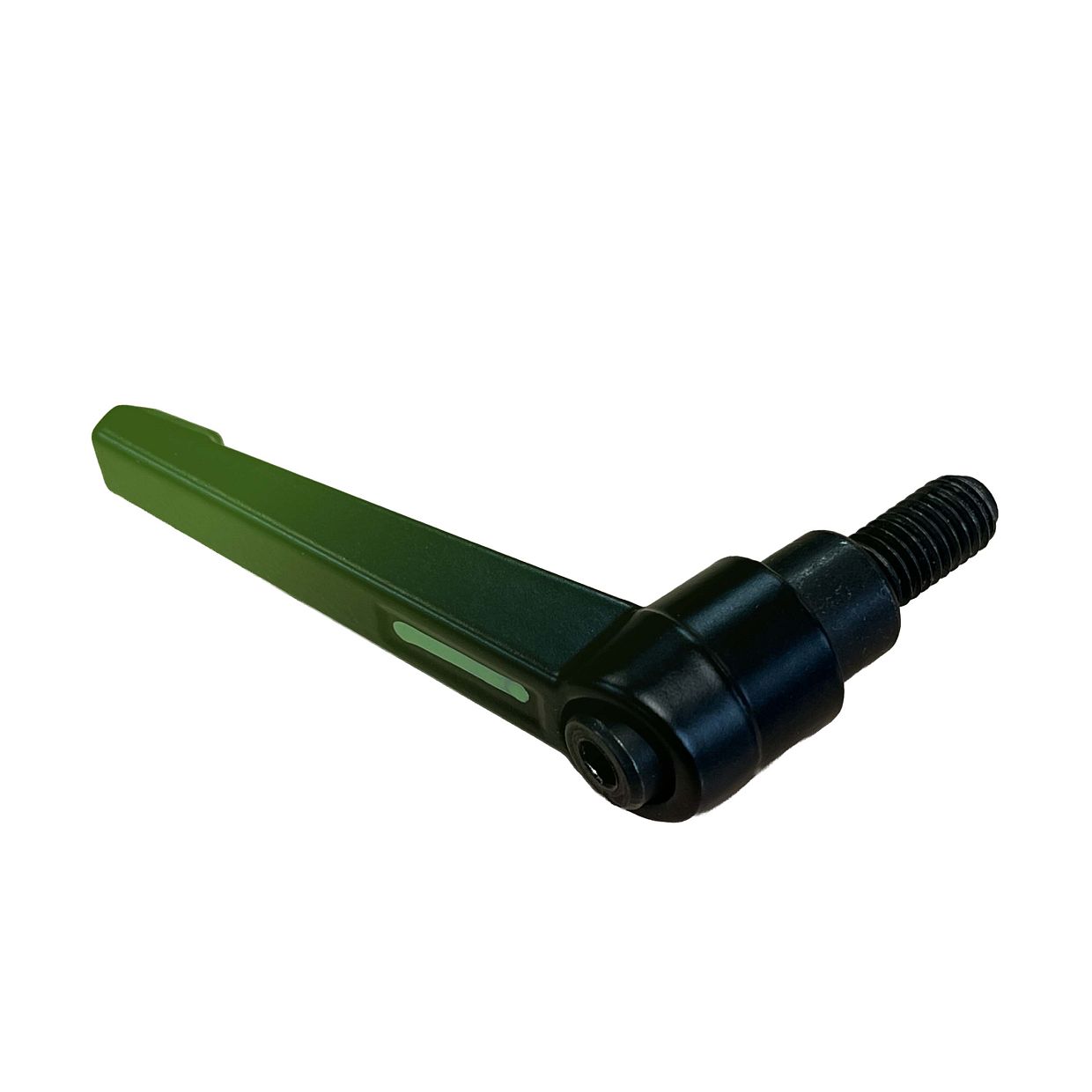

  • Osee upínací klička 1 × Osee upínací klička
Specifications and parameters
Specification Value
Panel Size 21.5 inch
Brightness 1500 nits
Color bit Depth 10 bits
SDI Format 2K (2048×1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf; HD (1920×1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I; HD (1280×720): 50/59.94/60P
Other IO USB Type-A x1: 3D-LUT upload, firmware upgrade; USB Type-C x1: internal color calibration via x-rite i1 display probe; 3.5mm mini jack: earphone
Power Supply 100–240V (50/60Hz) AC / 11–17V/5A (XLR Pin4)
Framing Tools, Exposure Tools Aspect, Safe, Center, Crosshatch, Anamorphic; False Color, Zebra, Waveform, Vector, Histogram
Focus Tools, Other Tools Focus Assist, Peaking; DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter, Time Code
Weight Item Weight: 6700g
Resolution 1920×1080
Contrast 1100:1
Video IO 2×3G/HD/SD-SDI signal inputs/outputs, 1×4K@30 HDMI input
HDMI Format 4K (4096×2160): 23.98/24/25/29.97/30P; UHD (3840×2160): 23.98/24/25/29.97/30P; 2K (2048×1080): 23.98/24/25/50/60P; HD (1920×1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60I; HD (1280×720): 50/59.94/60P
3D-LUT, Camera Log 3D-LUT: 10 User 3D LUTs Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film, 4K Film, 4.6K Film; Canon C Log, C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Log3G10, RedLogFilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6
Power Consumption 46W
BrandOSEE
Video I/OHDMI / SDI
Max Luminance1500 nits
Energy consumption46 W
Monitor functionNáhledový monitor
Size22 "
SDI-HDMI cross conversionANO
